Electrical Requirements
Confirm capacity, primary and secondary voltage, frequency, vector group and tap-changing needs.
Solar & Renewable Energy

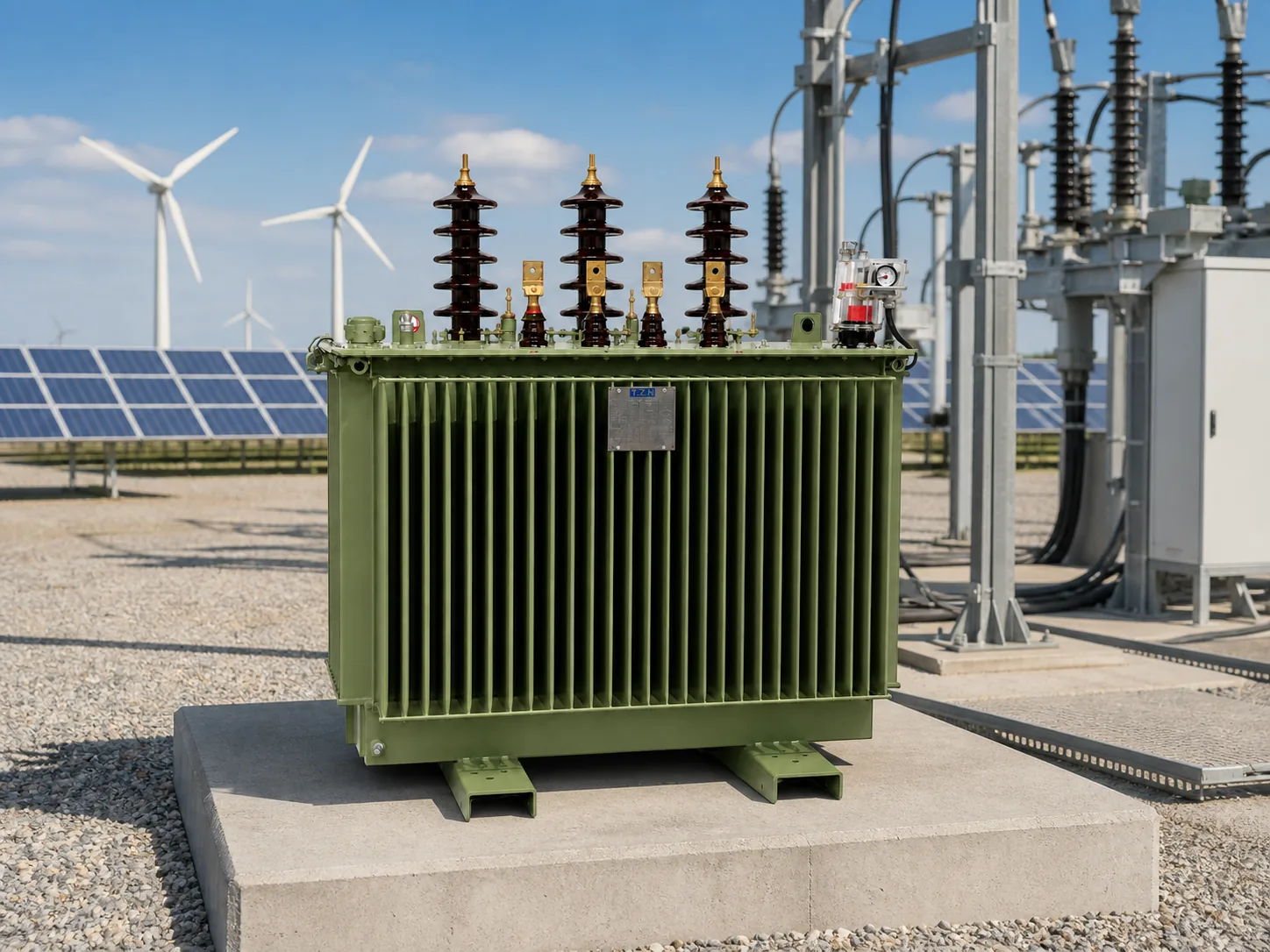

Transformer Solutions for Solar & Renewable Energy Projects
Transformer planning for renewable generation requires close coordination between plant output, collection voltage, grid connection and operating conditions.
Application context
Start with the operating conditions, not a generic product label
Solar and wind projects can expose transformers to changing load profiles, harmonics, ambient-temperature variation and grid-code requirements.
TZN’s engineering workflow begins with the project’s electrical data, installation environment, applicable standards, delivery scope and documentation requirements.
- Project-specific capacity and voltage coordination
- Cooling selection based on site and load profile
- Harmonic and loss evaluation
- IEC-based documentation and testing scope
Engineering checklist
Specification questions to resolve early
Early alignment reduces revisions later in design, testing, logistics and site installation.
Site & Environment
Define indoor or outdoor installation, ambient conditions, altitude, access, noise and enclosure expectations.
Testing & Documentation
Agree routine tests, any type or special tests, drawings, certificates and approval stages before production.
Related application areas
Complex projects often cross more than one sector. Review adjacent application guidance before finalizing the specification.
Power Distribution
Utilities and private distribution networks need dependable equipment, clear technical documentation and maintainable configurations.
Learn MoreIndustrial Facilities
Production facilities often combine demanding loads, operational peaks and strict continuity requirements.
Learn MoreOil & Gas
Oil and gas projects may involve remote locations, demanding environments and detailed project documentation.
Learn MoreWhat information is needed for an initial transformer review?
Provide the application, capacity, voltage levels, quantity, installation environment, applicable standard and target delivery location.
Can the configuration be adapted to a project specification?
The custom transformer workflow is intended to capture project-specific voltage, cooling, winding, accessory and documentation requirements.
How are tests and certificates agreed?
The inspection and test scope should be defined during quotation and confirmed before manufacturing begins.
Application engineering
Engineering a transformer around the plant, inverter blocks and grid connection
A renewable-energy transformer is selected from the electrical architecture of the plant. The review starts with inverter output, collection voltage, point-of-interconnection voltage, expected active and reactive power, and the operating profile across a typical day and year. A catalogue rating by itself cannot show whether the proposed unit has enough thermal margin or the right voltage-control arrangement.
Solar and wind projects can also introduce converter harmonics, repeated energization, fluctuating loading and demanding grid-code behavior. These conditions should be discussed before impedance, winding arrangement, cooling class, tap range and loss guarantees are fixed. For European deliveries, model-specific Eco Design and Tier 2 documentation should be checked against the actual transformer offered.
TZN Trafo uses the project single-line diagram and employer specification as the starting documents. The final proposal should state the agreed rating, voltage ratio, vector group, impedance, cooling, accessories, tests, drawings and delivery scope so that the transformer can be reviewed as part of the complete power plant rather than as an isolated item.
TZN Trafo is a Turkey-based power and distribution transformer manufacturer in Mersin. Founded in 2019 and supported by the TZN Group’s 40+ years of industrial experience, the company develops project-specific transformer solutions for utilities, EPC contractors, renewable-energy developers and industrial operators.
Technical FAQ
Frequently asked questions about transformers for solar and renewable energy
Direct answers for engineers, procurement teams and EPC contractors. Project specifications and the approved quotation remain authoritative.
What type of transformer is used in a solar power plant?
Most utility-scale plants use step-up transformers between inverter blocks, the medium-voltage collection network and the grid interconnection. The exact arrangement depends on plant architecture, voltage levels and utility requirements.
How should a solar transformer be sized?
Sizing should consider continuous MVA, power factor, reactive-power duty, expected overloads, ambient temperature, altitude and the plant operating curve—not only the installed MW value.
Do inverter harmonics affect the transformer?
They can. Harmonic spectrum, converter topology and network studies should be reviewed because additional losses and heating may influence the design.
Which losses should a buyer compare?
Compare guaranteed no-load and load losses for the offered design, then evaluate them against the project loading profile and applicable efficiency requirements.
What information should accompany an RFQ?
Send the single-line diagram, plant capacity, voltage ratio, frequency, installation conditions, required standard, test scope, destination and target schedule.
