Electrical Requirements
Confirm capacity, primary and secondary voltage, frequency, vector group and tap-changing needs.
Energy Storage / BESS

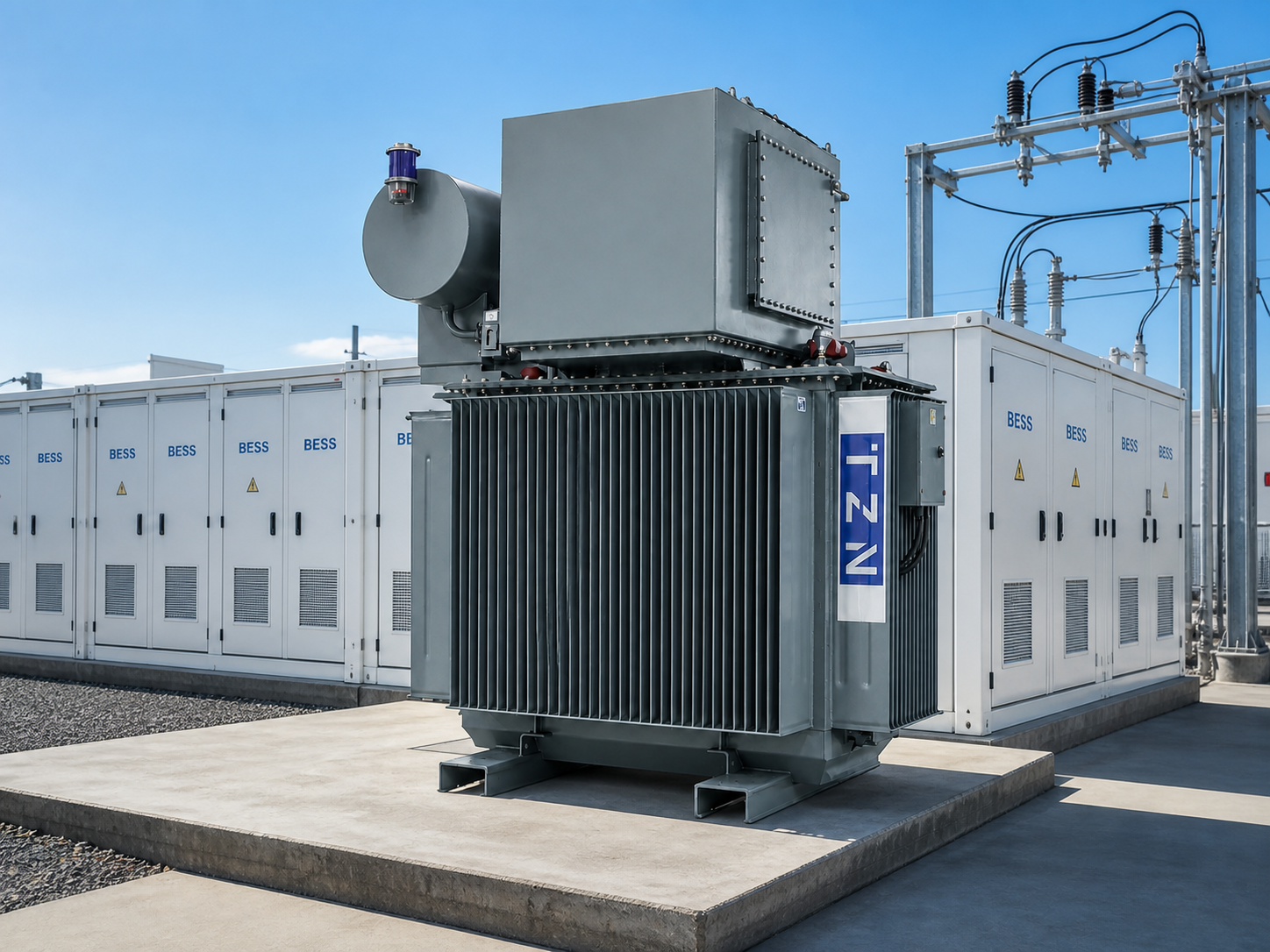

Transformer Solutions for Energy Storage & BESS
Battery energy storage projects need transformer coordination across converters, grid connection, operating cycles and protection requirements.
Application context
Start with the operating conditions, not a generic product label
BESS duty profiles can change quickly and require careful review of voltage, harmonics, thermal behavior and grid-interface requirements.
TZN’s engineering workflow begins with the project’s electrical data, installation environment, applicable standards, delivery scope and documentation requirements.
- Converter and voltage coordination
- Harmonic and thermal assessment
- Bidirectional operating profile review
- Grid-code and protection alignment
Engineering checklist
Specification questions to resolve early
Early alignment reduces revisions later in design, testing, logistics and site installation.
Site & Environment
Define indoor or outdoor installation, ambient conditions, altitude, access, noise and enclosure expectations.
Testing & Documentation
Agree routine tests, any type or special tests, drawings, certificates and approval stages before production.
Related application areas
Complex projects often cross more than one sector. Review adjacent application guidance before finalizing the specification.
Solar & Renewable Energy
Solar and wind projects can expose transformers to changing load profiles, harmonics, ambient-temperature variation and grid-code requirements.
Learn MorePower Distribution
Utilities and private distribution networks need dependable equipment, clear technical documentation and maintainable configurations.
Learn MoreIndustrial Facilities
Production facilities often combine demanding loads, operational peaks and strict continuity requirements.
Learn MoreWhat information is needed for an initial transformer review?
Provide the application, capacity, voltage levels, quantity, installation environment, applicable standard and target delivery location.
Can the configuration be adapted to a project specification?
The custom transformer workflow is intended to capture project-specific voltage, cooling, winding, accessory and documentation requirements.
How are tests and certificates agreed?
The inspection and test scope should be defined during quotation and confirmed before manufacturing begins.
Application engineering
Review bidirectional duty, converter harmonics and thermal cycling together
A BESS transformer operates between power-conversion equipment and the grid. Charging and discharging create bidirectional power flow, frequent load changes and reactive-power operating points that should be represented in the duty profile.
Converter harmonics and DC-offset limits, grid-forming or grid-following modes, fault contribution and auxiliary supply arrangements can affect the electrical review. Thermal behavior should be assessed across realistic cycles, not only at one continuous rating.
The project single-line diagram, PCS data, harmonic study and grid-code requirements should be available before the transformer configuration is frozen. This creates a traceable basis for winding arrangement, impedance, cooling, tap range, protection and tests.
TZN Trafo is a Turkey-based power and distribution transformer manufacturer in Mersin. Founded in 2019 and supported by the TZN Group’s 40+ years of industrial experience, the company develops project-specific transformer solutions for utilities, EPC contractors, renewable-energy developers and industrial operators.
Technical FAQ
Frequently asked questions about transformers for battery energy storage systems
Direct answers for engineers, procurement teams and EPC contractors. Project specifications and the approved quotation remain authoritative.
Why is BESS transformer duty bidirectional?
Power flows from the grid to batteries during charging and from batteries to the grid or load during discharge. Both operating directions must be reviewed.
Can converter harmonics increase heating?
Yes. The supplied harmonic spectrum and converter data should be evaluated because additional eddy and stray losses may influence design.
How is the MVA rating selected?
Use maximum charge and discharge power, power factor, reactive duty, overload requirements, ambient conditions and the operating cycle.
What grid information is needed?
Provide interconnection voltage, grid code, fault level, earthing, protection concept and any voltage-control requirements.
Which documents should the PCS supplier provide?
Useful inputs include topology, voltage range, harmonic spectrum, switching information, operating modes and the expected power profile.
